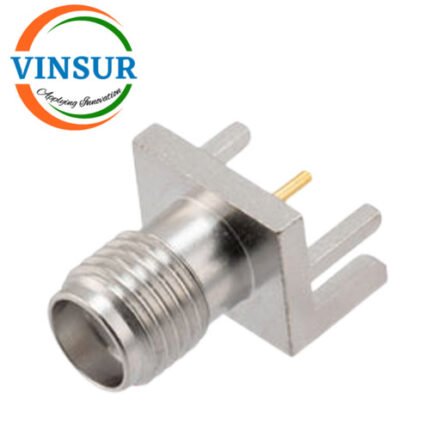

115219E5-44 — RF CONNECTOR – 50OHMS, SMA FEMALE PCB CONNECTOR
- RF CONNECTOR: 50Ω
- SMA
- STRAIGHT
- FEMALE
- PCB
Click Here to download the datasheet
Description
| Specifications | Â |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold |
| Gender | Jack (Female) |
| Orientation (Body) | Straight |
| Insulation | PTFE |
| Body Material | Brass |
| Body Plating | Tri-Metal |
| Electrical | |
| Frequency | DC-18GHz |
| Impedance | 50 ohms |
| Operating Voltage (AC) | 1,000 VRMS |
| Mechanical | |
| Mating Cycles | 500 |
| Mating Torque | 7 – 10 in – lbs 0.79 to 1.13 Nm |
