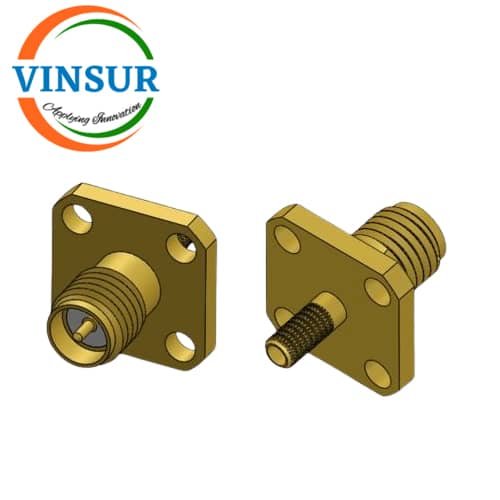

11921414 — RF CONNECTOR – 50 OHM , RP SMA FEMALE , STRAIGHT , 4 HOLE FLANGE , CRIMP TYPE , RG316-174 CABLE
- RF CONNECTOR: 50Ω
- SMA RP FEMALE
- STRAIGHT
- 4-Hole Flange Mount
- CRIMP TYPE
- RG-316 CABLE
Click Here to download the datasheet
For Orders & Info
Description
SMA connectors are precision connectors for microwave applications up to 18 GHz. The extended frequency version operates with excellent return loss performances up to 26.5 GHz. There is a huge variety of applications for SMA connectors, as in telecom, test & measurement, instruments, avionics, etc.
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack(Female) |
| Orientation | Straight |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 50 |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | RG316/RG174 |
| Mounting Features | 4-Hole Flange |
| Max Frequency (GHz) | DC to 6GHz |
| VSWR | ≤1.2 |
| Polarity | Reverse Polarity |
| Min. Temp. (Celsius) | -65° |
| Max. Temp. (Celsius) | 165° |
