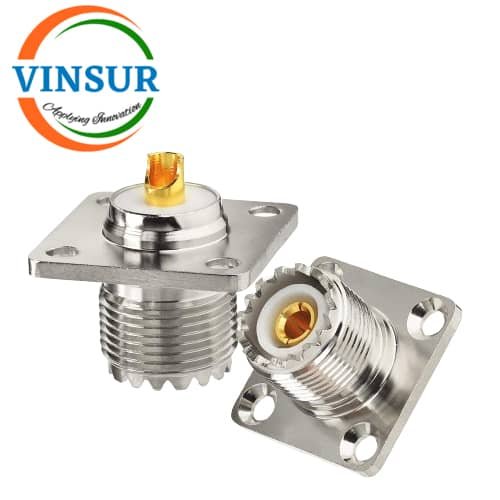

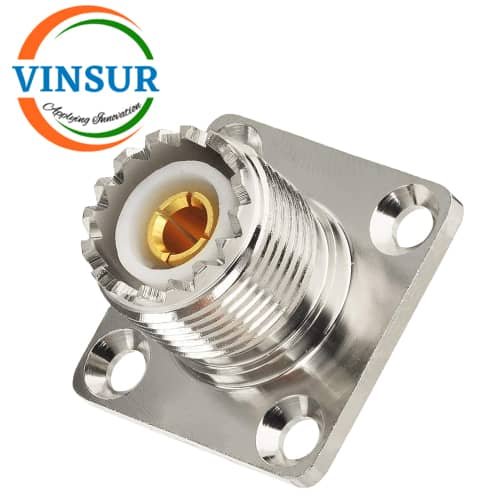

11C214I0 — RF CONNECTOR – 50 OHMS , UHF FEMALE , STRAIGHT , 4 HOLE FLANGE , SOLDER CUP
- RF CONNECTOR: 50Ω
- UHF FEMALE
- STRAIGHT
- 4-HOLE FLANGE MOUNT
- SOLDER CUP
- PCB MOUNT
Click Here to download the datasheet
For Orders & Info
Description
Originally intended for use as a video connector in radar applications, UHF coaxial connectors are general purpose units developed for use in low frequency systems from 0.6 – 300 MHz Invented for use in the radio industry in the 1930’s, UHF is an acronym for Ultra High Frequency because at the time 300 MHz was considered high frequency. They can be used when impedance mating is not required.
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | PCB-Solder Cup |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel Plating |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | LMR240 |
| Max Frequency (GHz) | DC to 3GHz |
| VSWR | ≤1.2 |
| Mounting Features | 4-Hole Flange |
| Polarity | Standard |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | +165 |
