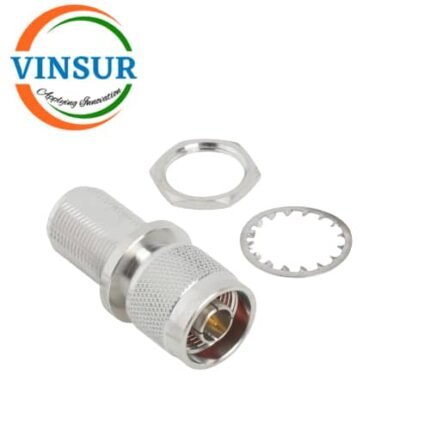

41111121 — RF ADAPTER – 50 OHMS, N-TYPE MALE TO N-TYPE FEMALE STRAIGHT BULKHEAD ADAPTERS

SKU: 41111121
  • RF Adapters
  • N Adapters
  • N to N Adapter
  • Male to Female
  • Bulkhead
  • 50Ω

Click Here to get Datasheet



For Orders & Info

Call Us WhatsApp Us
Active technical support

Compare
Add to wishlist

Description

ADAPTER SPECIFICATIONS
Adapter Side 1 Series N
Gender1 Plug(Male)
Orientation Straight
Body Plating Nickel
Body Material Brass
Contact Finish Gold
Contact Material Brass
Adapter Side 2 Series N
Gender2 Jack(Female)
Orientation Straight
Body Plating Nickel
Body Material Brass
Contact Finish Gold
Contact Material Brass
Mounting Features Bulkhead
Impedance (Ohms) 50
Insulator Material PTFE
Max Frequency (GHz) DC to 11GHz
VSWR(Max) ≤1.2
Min. Temp. (Celsius) -40°C
Max. Temp. (Celsius) +85°C
