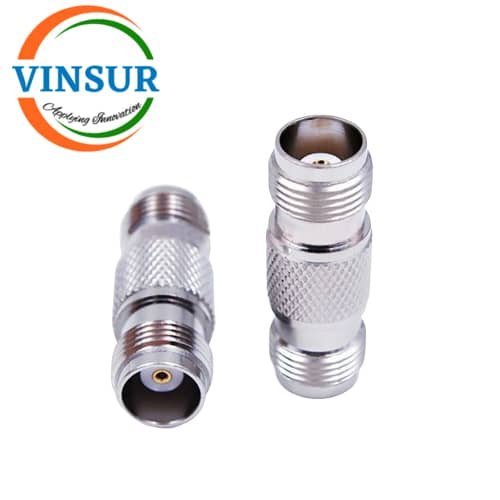

41220221– RF ADAPTER – 50 OHMS, TNC FEMALE TO TNC FEMALE STRAIGHT ADAPTER

SKU: 41220221

RF Adapters
TNC Adapters
TNC to TNC Adapter

Click Here to get Datasheet

For Orders & Info

Call Us WhatsApp Us

Add to wishlist

Description

ADAPTER SPECIFICATIONS
Adapter Side 1 Series	TNC
Gender1	Jack(Female)
Orientation	Straight
Body Finish	Nickel
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Adapter Side 2 Series	TNC
Gender2	Jack(Female)
Orientation	Straight
Impedance (Ohms)	50
Body Finish	Nickel
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Insulator Material	PTFE
Mounting Feature	–
Max Frequency (GHz)	DC to 6Ghz
VSWR	≤1.2:1
Min. Temp. (Celsius)	-45°C
Max. Temp. (Celsius)	+125°C
