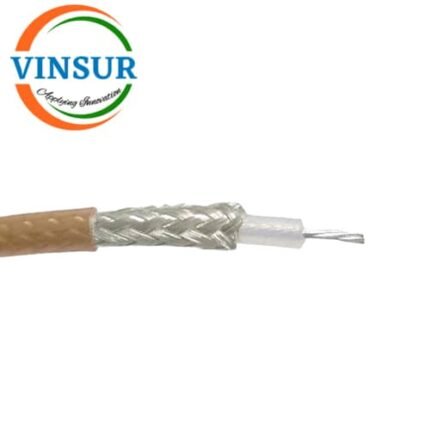

RG-316 COAXIAL CABLE DC-6GHZ (VSW-RG 316-CC)
- RF COAXIAL CABLE
- RG-316 COAXIAL CABLE
- DC-6GHz
Description
| CABLE CONSTRUCTION | ||
| Description | Material | Diameter(mm) |
| Inner Conductor | Silver plated copper clad steel | 7 / 0.17 ±0.02 |
| Dielectric | PTFE | 1.52 ±0.08 |
| Shield | 95% Silver plated copper braid | 1.98 ±0.08 |
| Jacket | FEP Brown | 2.49 ±0.1 |
| ELECTRICAL SPECIFICATIONS | |
| Impedance | 50Ω ±2Ω |
| Capacitance | 95pF/m |
| Velocity of Propagation | 69.5% |
| Conductor DCR | 277.2Ω / km |
| Outer shield DCR | 20Ω / km |
| Max. Operating Frequency | 3,000MHz |
| Max. Operating Voltage | 1,200 RMS |
| Voltage withstand | 2,000Vrms |
| Spark Test | 2,000Vrms |
| Operating Temperature Range | -55°C to +200°C |
| Attenuation (at 20°C) | |
| Frequency(GHz) | Attenuation dB/100 feet |
| 0.1 | 7.99 |
| 0.4 | 16.19 |
| 1 | 26.10 |
| 3 | 46.71 |
| 4 | 56.40 |
| 5 | 67.07 |
| 6 | 76.22 |
