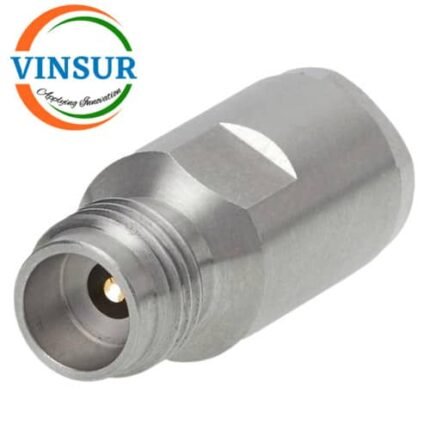

VSW-2.4-FT50G — RF TERMINATORS 2.4MM TERMINATION FEMALE, 50GHZ
- RF Passive Device
- RF Termination Load
- DC to 50Ghz
- 2.4mm Female
For Orders & Info
Description
| ELECTRICAL SPECIFICATION | |
| Freq(MHz) | Dc to 50Ghz |
| VSWR | 1.22:1 (max.) |
| Power Rating(W) | 0.25W (CW) |
| Impedance | 50 ohm |
| Connector | 2.4mm |
| Gender | Jack(Female) |
| MECHANICAL SPECIFICATION | |
| Mating Torque | 7-10 inch-pounds |
| Durability | 500 cycles (min.) |
| Operating Temperature | -55°C to 125°C |
| MATERIALS | |
| Housing | Passivated stainless steel |
| Coupling nut | Passivated stainless steel |
| Male Centre Contact | Gold plated beryllium copper |
| Female Centre Contact | Gold plated beryllium copper |
