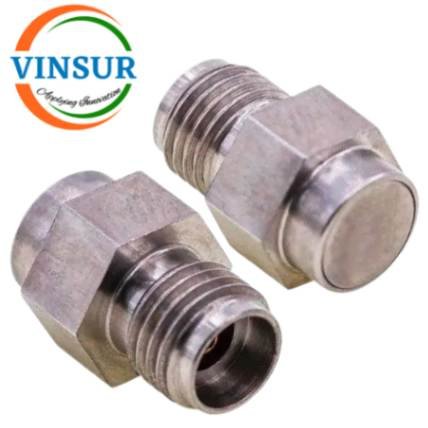

VSW-2.92-FT-40G –RF Termination Load (2W DC-40GHz 2.92mm Female)
P/N :-VSW-2.92-FT-40G
- RF Passive Device
- RF Termination Load
- 2.92mm Termination Load
- DC to 50GHz, 50Ω
- 2.4mm Male
For Orders & Info
Description
| MATERIAL SPECIFICATION | |
| Connector | 2.92mm |
| Gender | Jack(Female) |
| Body Materials and Plating | Stainless Steel with Passivated |
| Orientation | Straight |
| Insulator | PTFE |
| ELECTRICAL SPECIFICATION | |
| Freq(MHz) | DC to 40Ghz |
| VSWR | ≤1.2:1 (DC 0~40GHz) |
| Power Rating(W) | 2W |
| Impedance | 50 Ω |
| Insertion Loss | ≤0.05xSqt(f_Ghz) |
| Operation Temperature Rating | -55°C ~ +125°C |
