VSW-BPF-2.2-2.29G–RF Band pass Filter (2.2 to 2.90GHz)

P/N :-VSW-BPF-2.2-2.29G

RF Filter
RF Band Pass Filter
2.2 to 2.90GHz

Click Here to get Data Sheet

For Orders & Info

Call Us WhatsApp Us

Add to wishlist

Description

SPECIFICATION
Parameter		Min	Typ	Max	Units
Frequency Range		2.2		2.290	GHz
Insertion Loss			0.7	1	dB
Pass Band Ripple			0.3	0.5	dB
VSWR			1.3	1.5	:1
Rejection @F1&F2	2.180 GHz , 2.380 GHz		50		dB
Power Rating		1		20	W
Input/ Output Connector	N Female to Female
Impedance	50				Ω

Customer Reviews

Reviews

There are no reviews yet.

Be the first to review “VSW-BPF-2.2-2.29G–RF Band pass Filter (2.2 to 2.90GHz)”

You may also like

RF Passive Devices, RF Patch Panel Port BNC

19″ Rack mountable patch Panel loaded with 16 BNC Female Adapters

RF Passive Devices, RF Taps

VSW-4TP-8dBi –RF Taps (4 Way 8dB 5-1000MHz F Female)

RF Band Pass Filter, RF Passive Devices

VSW-BPF-1317-SMAF–RF Band Pass Filter (136 to 174MHz)

RF Passive Devices, RF DC Block

VSW-DB-18-SMF–DC Block (10MHz-18GHz, SMA Male-Female)

RF Passive Devices, RF Lightning Arresters

VSW-N-FF-SGA-ADP–RF Coaxial Surge Arrester(N Female to Female Bulk head)

RF Passive Devices, RF Lightning Arresters

VSW-N-MF-SGA-ADP–RF Coaxial Surge Arrester(N Male to Female Bulk head)

RF Passive Devices, RF Dust Cap

VSW-SMA-DST-CP–SMA Male Dust Cap

RF Band Pass Filter, RF Passive Devices

VSW250008-FL–RF Band Pass Filter LNA(2180-2485MHz)

RF Band Pass Filter, RF Passive Devices

VSW250017-FL–RF Band Pass Filter (4.5 to 5GHz)

RF Passive Devices, RF Lightning Arresters

VSW250039-SRP–RF Coaxial Surge Protector (7-16(DIN) Male to Female)

RF Band Pass Filter, RF Passive Devices

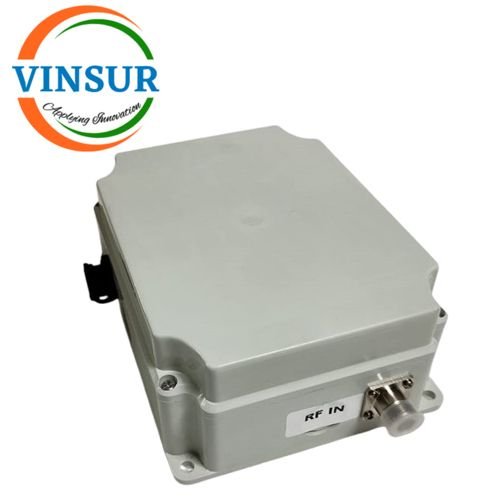

VSW260005-BP–FRF Band Pass Filter LNA(2200 to 2300MHz)
