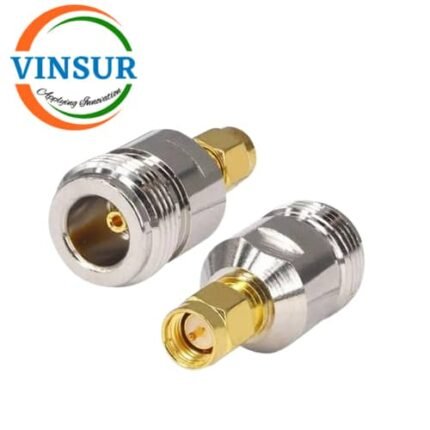

VSW-41120411-ADP — RF CONNECTOR – 50OHMS, N-TYPE FEMALE TO SMA MALE STRAIGHT ADAPTERS
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | N-type |
| Gender1 | Jack(Female) |
| Orientation | Straight |
| Body Plating | Gold/Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Adapter Side 2 Series | SMA |
| Gender2 | Plug(Male) |
| Orientation | Straight |
| Body Plating | Gold/Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Mounting Features | – |
| Impedance (Ohms) | 50Ω |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 6GHz |
| VSWR(Max) | ≤1.2 |
| Min. Temp. (Celsius) | -55°C |
| Max. Temp. (Celsius) | +85°C |
