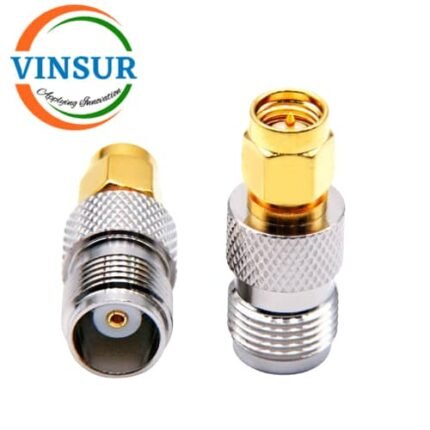

VSW-41410221 — RF ADAPTER – 50 OHMS, SMA MALE TO TNC FEMALE STRAIGHT ADAPTER

SKU: VSW-41410221

RF Adapters
SMA Adapters
SMA to TNC Adapter
50Ω

Click Here to get Datasheet

For Orders & Info

Call Us WhatsApp Us

Add to wishlist

Description

ADAPTER SPECIFICATIONS
Adapter Side 1 Series	SMA
Gender1	Plug(Male)
Body Finish	Gold
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Adapter Side 2 Series	TNC
Gender2	Jack(Female)
Orientation	Straight
Impedance (Ohms)	50
Body Finish	Nickel
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Insulator Material	PTFE
Coupling Mechanism	Threaded
Mounting Feature	–
Max Frequency (GHz)	DC to 6GHz
VSWR	≤1.25
Min. Temp. (Celsius)	-45°C
Max. Temp. (Celsius)	+125°C
