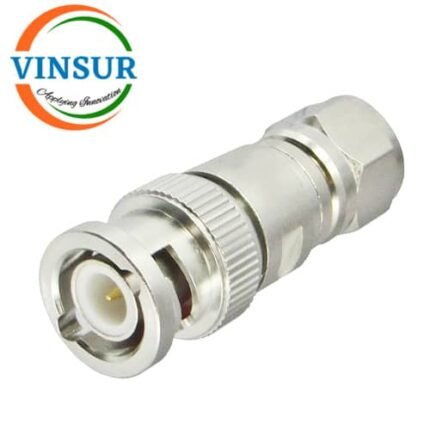

VSW-41B1103110-AD — RF ADAPTER – 50 OHMS,F-TYPE,MALE,STRAIGHT, TO BNC,MALE,STRAIGHT,ADAPTERS

SKU: VSW-41B1103110-AD

RF Adapters
F-Type Adapters
F-Type to BNC Adapter
Male to Male

Click Here to get Datasheet

For Orders & Info

Call Us WhatsApp Us

Add to wishlist

Description

ADAPTER SPECIFICATIONS
Adapter Side 1 Series	F-Type
Gender1	Plug(Male)
Orientation	Straight
Impedance (Ohms)	75
Adapter Side 2 Series	BNC
Gender2	Plug(Male)
Orientation	Straight
Mounting Features	–
Impedance (Ohms)	50
Body Plating	Nickel
Body Material	Beryllium Copper
Contact Finish	Gold
Contact Material	Brass
Insulator Material	PTFE
Max Frequency (GHz)	DC to 2GHz
VSWR	1.20 Max
Min. Temp. (Celsius)	-40°C
Max. Temp. (Celsius)	+120°C
