| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | F-Type |
| Gender1 | Plug(Male) |
| Orientation | Straight |
| Impedance (Ohms) | 75 |
| Adapter Side 2 Series | BNC |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Mounting Features | – |
| Impedance (Ohms) | 50 |
| Body Plating | Nickel |
| Body Material | Beryllium Copper |
| Contact Finish | Gold |
| Contact Material | Brass |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 2GHz |
| VSWR | 1.20 Max |
| Min. Temp. (Celsius) | -40°C |
| Max. Temp. (Celsius) | +120°C |

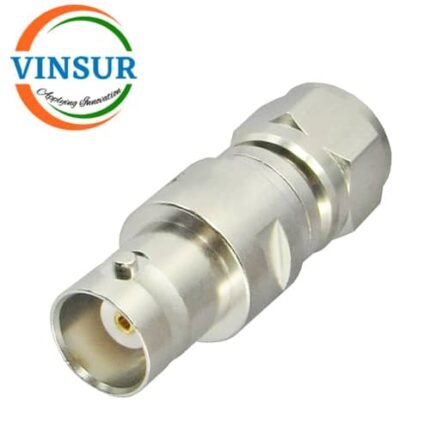

VSW-41B1103210-AD — RF ADAPTER – 50 OHMS,F TYPE,MALE,STRAIGHT, TO BNC,FEMALE,STRAIGHT,ADAPTERS
