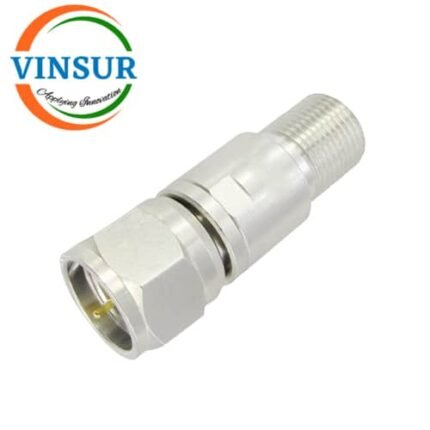

VSW-41B110B210-AD — RF ADAPTER — 50 OHMS,FTYPE,MALE,STRAIGHT, TO F TYPE,FEMALE,STRAIGHT,ADAPTERS

SKU: VSW-41B110B210-AD

RF Adapters
F-Type Adapters
F-Type to F-Type Adapter
Male to Female

Click Here to get Datasheet

For Orders & Info

Call Us WhatsApp Us

Add to wishlist

Description

ADAPTER SPECIFICATIONS
Adapter Side 1 Series	F-Type
Gender1	Plug(Male)
Orientation	Straight
Impedance (Ohms)	75
Adapter Side 2 Series	F-Type
Gender2	Jack(Female)
Orientation	Straight
Mounting Features	–
Impedance (Ohms)	75
Body Plating	Nickel
Body Material	Beryllium Copper
Contact Finish	Gold
Contact Material	Brass
Insulator Material	PTFE
Max Frequency (GHz)	DC to 2GHz
VSWR	≤1.25
Min. Temp. (Celsius)	-40°C
Max. Temp. (Celsius)	+85°C
