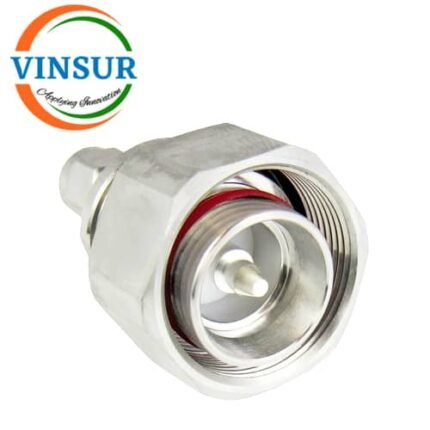

VSW-41G10411-ADP — RF ADAPTER – 50 OHMS, 4.3-10 MALE STRAIGHT TO SMA MALE STRAIGHT ADAPTER

SKU: VSW-41G10411-ADP

RF Adapters
4.3-10 Adapters
4.3-10 to SMA Adapter
50Ω

For Orders & Info

Description

ADAPTER SPECIFICATIONS
Adapter Side 1 Series	4.3-10
Gender1	Plug(Male)
Orientation	Straight
Body Plating	Nickel
Body Material	Brass
Contact Finish	Silver
Contact Material	Beryllium Copper
Adapter Side 2 Series	SMA
Gender2	Plug(Male)
Orientation	Straight
Body Plating	Nickel
Body Material	Brass
Contact Finish	Silver
Contact Material	Beryllium Copper
Mounting Features	–
Impedance (Ohms)	50
Insulator Material	PTFE
Max Frequency (GHz)	DC to 6GHz
VSWR(Max)	≤1.20 Max
Min. Temp. (Celsius)	-65°C
Max. Temp. (Celsius)	+165°C
