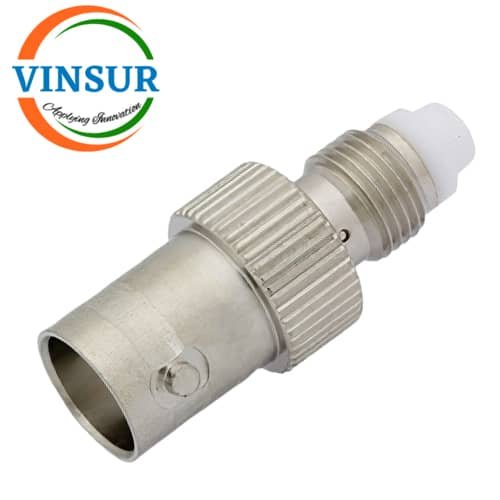

VSW-41L2103110-AD — RF ADAPTER – 50 OHMS,FME,FEMALE, STRAIGHT, TO, BNC, FEMALE , STRAIGHT ADAPTER

SKU: VSW-41L2103110-AD

RF Adapters
FME Adapters
FME to BNC Adapter
Female to Female

For Orders & Info

Description

ADAPTER SPECIFICATIONS
Adapter Side 1 Series	FME
Gender1	Jack(Female)
Orientation	Straight
Mounting Features	–
Adapter Side 2 Series	BNC
Gender2	Jack(Female)
Orientation	Straight
Mounting Features	–
Impedance (Ohms)	50
Body Plating	Nickel
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Insulator Material	PTFE
Max Frequency (GHz)	DC to 1GHz
VSWR	≤1.3
Min. Temp. (Celsius)	-65°C
Max. Temp. (Celsius)	+165°C
