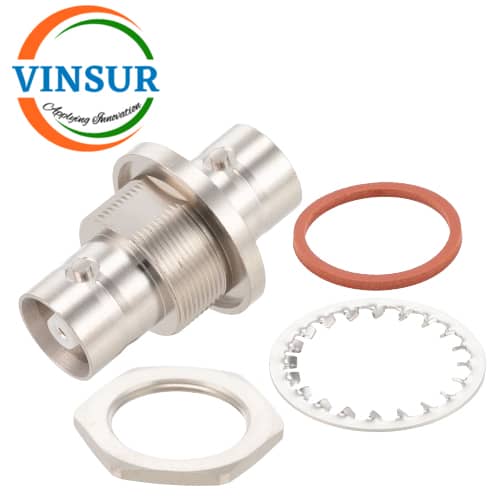

VSW-41Q20Q211-AD — RF ADAPTER – 50OHMS C-TYPE FEMALE STARIGHT TO C-TYPE FEMALE STARIGHT BULK HEAD ADAPTERS
P/N :-VSW-41Q20Q211-AD
- RF Adapter
- C-Type Adapters
- C-Type to C-Type Adapters
- Female to Female
- 50Ω
- Max Frequency (GHz) -DC~ 11GHz
Click here to get Data Sheet
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | C-Type |
| Gender1 | Jack(Female) |
| Orientation | Straight |
| Mounting Features | Bulkhead |
| Adapter Side 2 Series | C-Type |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Mounting Features | – |
| Impedance (Ohms) | 50 |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Silver |
| Contact Material | Brass |
| Insulator Material | PTFE |
| Max Frequency (GHz)Â Â Â Â Â | DC to 11 GHz |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +165°C |
