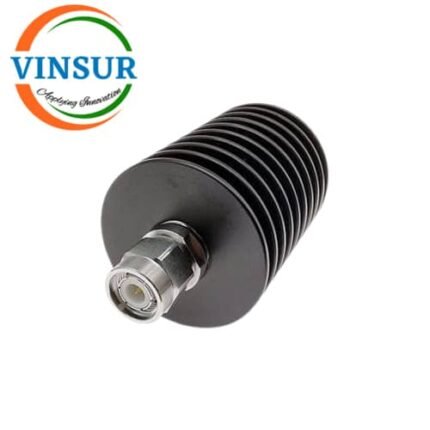

VSW-TNC-25W-6G — RF TERMINATORS TNC MALE, 6GHZ 25WATT
- RF Passive Device
- RF Termination Load
- DC to 6Ghz
- TNC Male
Description
| ELECTRICAL SPECIFICATION | |
| Freq(MHz) | Dc to 6Ghz |
| VSWR | 1.25 max |
| Power Rating(W) | 25W |
| Impedance | 50 ohm |
| Connector | TNC |
| Gender | Plug(Male) |
| MECHANICAL SPECIFICATION | |
| Connector Body | Ternary alloy plated brass |
| Centre Contact | Gold plated brass |
| Heat Sink | Black anodized aluminium |
| ENVIRONMENTAL Â SPECIFICATION | |
| Operating Temp | -55℃ to 100℃ |
| Storage Temp | -55℃ to 125℃ |
| RoHS | Compliant |
