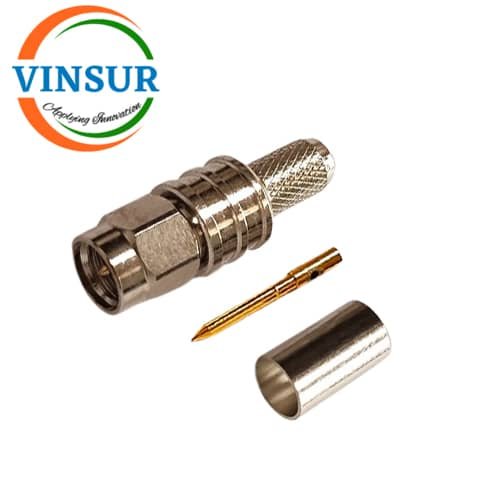

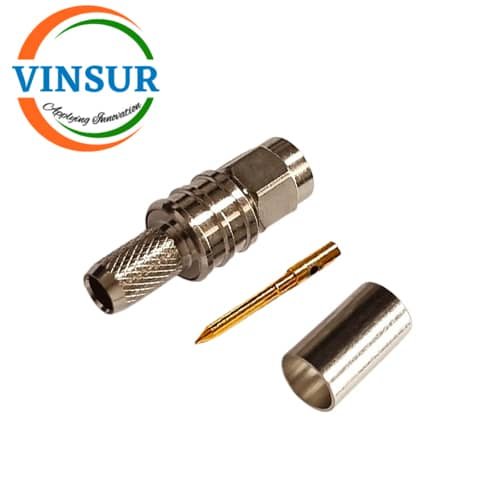

VSW250007-CN — RF CONNECTOR – 50 OHMS , SMA MALE , STRAIGHT , CRIMP TYPE , VSW-240 CABLE (8GHz)
- RF CONNECTOR: 50Ω
- SMA MALE
- STRAIGHT
- CRIMP TYPE
- VSW-240 CABLE
- DC to 8GHz
Click Here to download the datasheet
Click Here to download the drawing
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Straight |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | VSW240 |
| Max Frequency (GHz) | DC to 8 GHz |
| VSWR | ≤1.25 |
| Polarity | Standard |
| Thread Direction | Standard |
| Operating Temperature | -40°C ~ 85°C |
