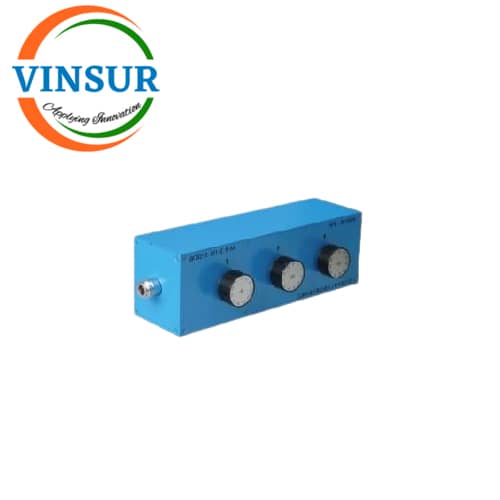

VSW250030-ATT — Variable Attenuator 2W DC-3GHz 110dB
- RF Attenuator
- RF Variable Attenuator
- SMA
For Orders & Info
Description
| ELECTRICAL & MECHANICAL SPECIFICATIONS | |
| Frequency Range | DC-3GHz |
| Attenuation step | 0-110dB in 1dB steps |
| Attenuation Accuracy(dB) | ±0.5dB (≤10dB)
± 0.8dB or 3% (11-69dB) ±6% (70-99dB) ±7% (100-121dB) |
| VSWR | 1.75 |
| Insertion loss(dB) | ≤2.5 |
| Power rating(W) | 2W |
| Peak Power(W) | 100W(5μs pulse width, 2% duty cycle) |
| Impedance | 50 Ω |
| Temperature range | -20°C ～ +80°C |
| Size | 250.5×87×79mm |
| Weight | About 1630g |
