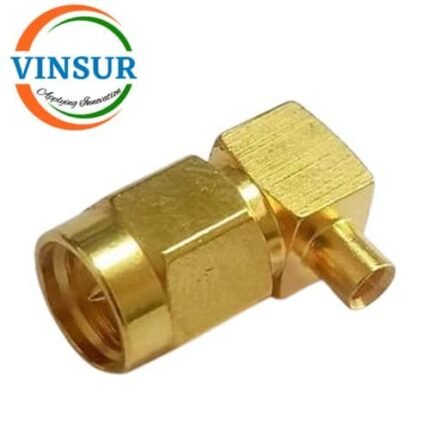

VSW250034-CN — RF CONNECTOR – 50 OHMS SMA MALE RIGHT ANGLE SOLDER TYPE RG405 (0.086 INCH)CABLE 18GHz
- RF CONNECTOR: 50Ω
- SMA MALE
- RIGHT ANGLE
- CRIMP TYPE
- RG-405(0.86) CABLE
Click Here to download the datasheet
Click Here to download the drawing
For Orders & Info
Description
SMA connectors are precision connectors for microwave applications up to 18 GHz. The extended frequency version operates with excellent return loss performances up to 26.5 GHz. There is a huge variety of applications for SMA connectors, as in telecom, test & measurement, instruments, avionics, etc.
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Right Angle |
| Termination Style | Cable – Solder |
| Impedance (Ohms) | 50 |
| Centre Conductor | Beryllium copper, Gold plating |
| Body Material | Gold plating |
| Coupling Nut | Brass, Gold plating |
| VSWR | ≤1.3 |
| Insulator Material | PTFE |
| Cable Type | RG405(0.86) |
| Max Frequency (GHz) | DC to 18GHz |
| Polarity | Standard |
| Thread Direction | Standard |
| Contact Termination | Solder |
| Temp (Max Degrees Celsius) | 165° |
| Temp (Min Degrees Celsius) | -65° |
