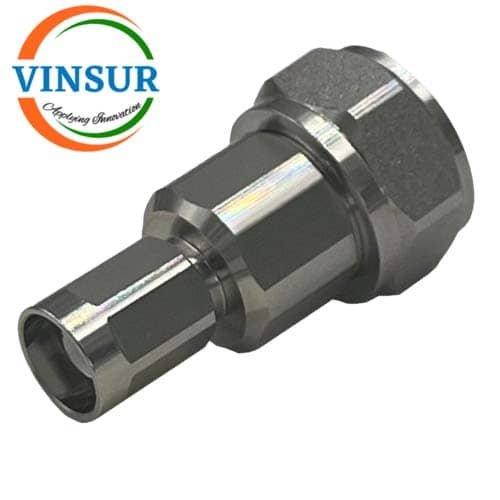

VSW260019-AD — RF ADAPTER – 50 OHMS 4.3-10 MALE TO NEX10 MALE STRAIGHT ADAPTER
P/N :VSW260019-AD
- RF Adapter
- 4.3-10 Adapters
- 4.3-10 to NEX10 Adapters
- Male to Female
- 50Ω
- Max Frequency (GHz) -DC~6GHz
Click here to get Data Sheet
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | 4.3-10 |
| Adapter Type | Between-Series |
| Gender1 | Plug(Male) |
| Orientation | Straight |
| Body Plating | White Bronze |
| Body Material | Brass |
| Contact Finish | Silver |
| Contact Material | Beryllium Copper |
| Adapter Side 2 Series | Plug(Male) |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Body Plating | White Bronze |
| Body Material | Brass |
| Contact Finish | Silver |
| Contact Material | Beryllium Copper |
| Mounting Features | – |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Max Frequency (GHz)Â Â Â Â Â | DC to 6GHz |
| VSWR(Max) | ≤1.5 Max |
| Min. Temp. (Celsius) | -40°C |
| Max. Temp. (Celsius) | +85°C |
