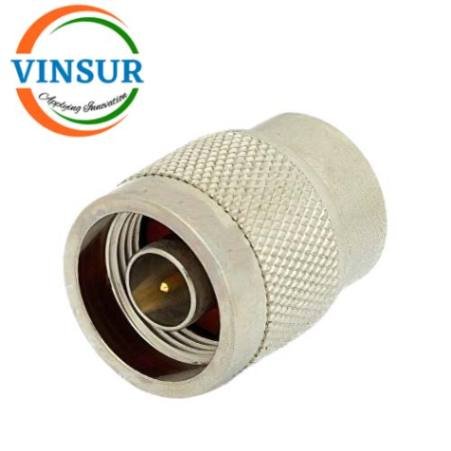

VSW260033-TL–RF Termination Load (2W DC-18GHz N Male)
P/N:- VSW260033-TL
- RF Passive Device
- RF Termination/Dummy loadÂ
- N-Male
- DC-18GHz,50Ω
For Orders & Info
Description
| MATERIAL SPECIFICATIONS | |
| Connectors | N Male |
| Connector 1 Contact Material & Plating | Beryllium Copper Gold |
| Body Material & Plating | Brass Nickel |
| Housing Material & Plating | Brass Nickel |
| Coupling Nut | Brass Nickel |
| ELECTRICAL SPECIFICATIONS | |
| Impedance | 50Ω |
| Frequency Range(From DC) | 18GHz |
| VSWR Max | DC – 26 1.5:1 & 26 – 40Â 1.6:1 |
| Input Power (CW) | 2W |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operation Temperature Rating | -65°C ~ +125°C |
