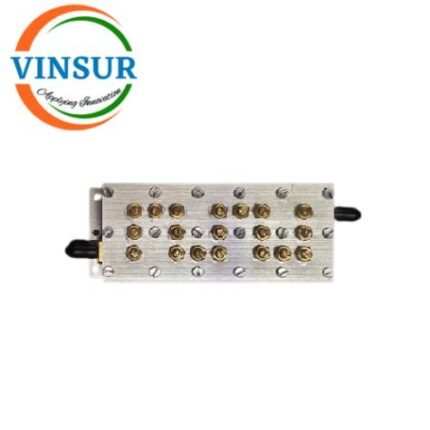

VSW250017-FL–RF Band Pass Filter (4.5 to 5GHz)

P/N :- VSW250017-FL

RF Filter
RF Band Pass Filter
4.5 to 5GHz

Click Here to get Data Sheet

For Orders & Info

Call Us WhatsApp Us

Add to wishlist

Description

SPECIFICATION
Parameter		Min	Typ	Max	Units
Frequency Band width	500	–		–	MHz
Frequency @ F1	4.5				GHz
Frequency @ F2	5			–	GHz
Insertion Loss			0.8	1.5	dB
Return Loss		15		18	dB
VSWR			1.3	1.5	:1
Rejection	@3GHz	40		45	dB
Rejection	@6GHz	40		45	dB
Power Rating		10		20	W
Input/ Output Connector	SMA Female to Male
Impedance	50				Ω
