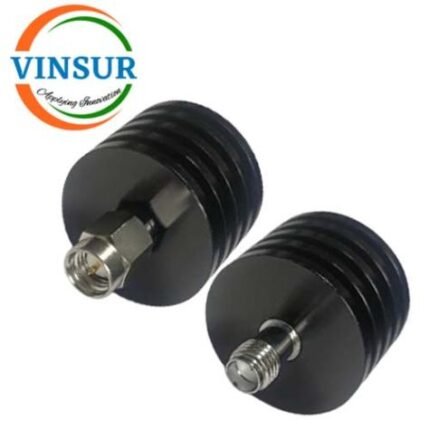

VSW260059-ATT–RF Fixed Attenuator (5W 3dB DC-8GHz SMA Male to SMA Female)
P/N :- VSW260059-ATT
- RF Attenuator
- RF Fixed Attenuator
- DC to 8GHz
- Attenuation(3db)
- SMA Male to Female
Click Here to get Data Sheet
For Orders & Info
Description
| SPECIFICATION | |
| Type | RF Fixed Attenuator |
| Connector 1 Series | SMA |
| Gender1 | Male |
| Connector 1 Series | SMA |
| Gender2 | Female |
| Impedance (Ohms) | 50 |
| Power Input | 5Watt |
| Attenuation | 3dB |
| Attenuation Accuracy | 1.5dB |
| VSWR | ≤ 1.20 (Max) |
| Body Material | Stainless Steel |
| Contact Material | Beryllium copper gold plated |
| Dielectric | PTFE |
| Max Frequency               | DC to 8GHz |
| Min. Temp. (Celsius) | -55°C |
| Max. Temp. (Celsius) | +125°C |
