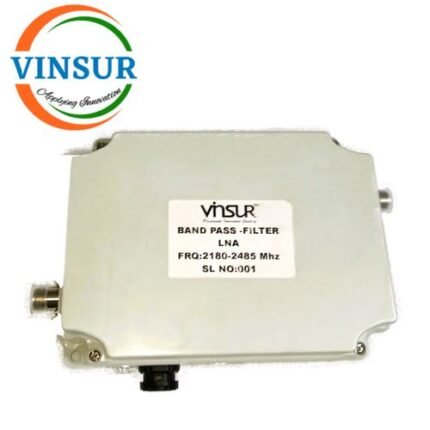

VSW250008-FL–RF Band Pass Filter LNA(2180-2485MHz)
For Orders & Info
Description
| SPECIFICATION FOR BPF | |||||
| Parameter | Â | Min | Typ | Max | Units |
| Frequency Range | 2180 | 2485 | MHz | ||
| Band width | 305 MHz | ||||
| Insertion Loss | 0.8 | 1.5 | dB | ||
| Pass Band Ripple | 0.3 | 0.5 | dB | ||
| VSWR | 1.3 | 1.5 | :1 | ||
| Rejection @ 2Ghz | 45 | dB | |||
| Rejection @ 2.7Ghz | 45 | dB | |||
| Power Rating | 1 | 10 | W | ||
| Input/ Output Connector | N Female And SMA Female | ||||
| Impedance | 50 | Ω | |||
| SPECIFICATION FOR LNA | |||||
| Frequency Range | 2180 | 2485 | MHz | ||
| Gain | 32 | 37 | dB | ||
| Noise Figure | <1.5 | ||||
| Gain Flatness | ±2 | dB | |||
| Power Supply | DC 5V | ||||
| Input & Output Impedance | 50 | Ω | |||
| Connectors | N-Type/SMA | ||||
| Enclosure | Outdoor, protected from rain | ||||
| Dimension | IP65 Box 200*150*80 | ||||
| DC Supply Connector | Waterproof | ||||
