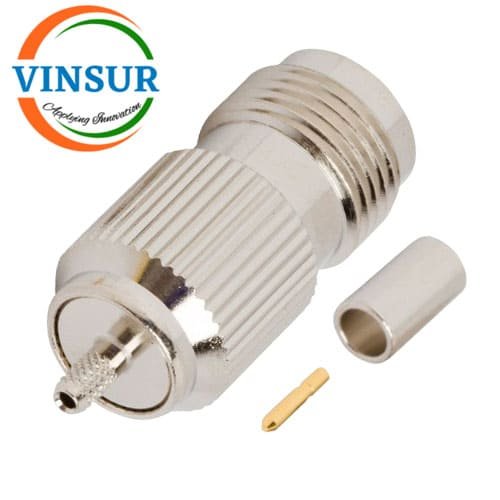

11221012 — RF CONNECTOR – 50 OHMS , TNC FEMALE , STRAIGHT , CRIMP TYPE , RG178 CABLE

SKU: 11221012

RF CONNECTOR: 50Ω
TNC FEMALE
STRAIGHT
CRIMP TYPE
RG-178 CABLE

Click Here to download the datasheet

For Orders & Info

Call Us WhatsApp Us

Add to wishlist

Description

The TNC connector series is a miniature, threaded weatherproof series with a constant 50 Ω impedance and a frequency range of DC to 11 GHz. The TNC series shares its contact design with the BCN series, utilizing a threaded coupling nut for secure mating and higher frequency performance than the BNC.

CONNECTOR SPECIFICATIONS
Gender	Jack (Female)
Orientation	Straight
Termination Style	Cable – Crimp
Impedance (Ohms)	50
Body Finish	Nickel
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Contact Termination Style	Solder
Insulator Material	PTFE
Cable Type	RG178
Mounting Features	–
Max Frequency (GHz)	DC to 6GHz
VSWR	≤1.2
Polarity	Standard
Min. Temp. (Celsius)	-65°
Max. Temp. (Celsius)	+165°
