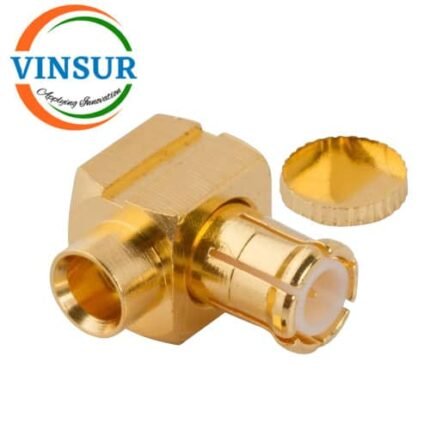

The MCX (Micro Coaxial) series is available with 50 or 75 ohm options, and has broadband capability ranging from DC to 6 GHz. In addition, the MCX series features secure, fast and easy Snap-On/ snap-off coupling. MCX connectors were introduced in the 1980s and conform to the European CECC 22220 spec.
CONNECTOR SPECIFICATIONS | |
Gender | Plug (Male) |
Orientation | Right Angle |
Termination Style | Cable – Solder |
Impedance (Ohms) | 50 |
Body Finish | Gold Plating |
Body Material | Brass |
Contact Finish | Gold |
Contact Material | Brass |
Contact Termination Style | Solder |
Insulator Material | PTFE |
Cable Type | RG405(0.085) |
Max Frequency (GHz) | DC to 6GHz |
VSWR(Max) | 1.40 @ 6GHz |
Voltage Rating | 170 VRMS @ Sea Level |
Min. Temp. (Celsius) | -55°C |
Max. Temp. (Celsius) | +105°C |
