| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | MMCX |
| Gender1 | Plug(Male) |
| Orientation | Straight |
| Impedance (Ohms) | 50 |
| Adapter Side 2 Series | SMA |
| Gender2 | Plug(Male) |
| Orientation | Straight |
| Mounting Features | – |
| Impedance (Ohms) | 50 |
| Body Plating | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 6GHz |
| VSWR | ≤1.15 |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +165°C |

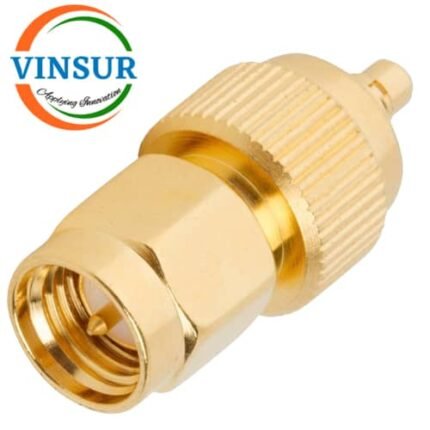

41410711 — RF ADAPTER – 50 OHMS, MMCX MALE TO SMA MALE STRAIGHT ADAPTERS
- RF ADAPTER: 50Ω
- MMCX Adapter
- MMCX to SMA Adapter
Click Here to download the datasheet
