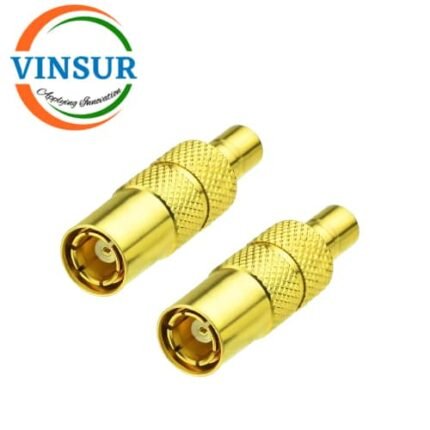

41510521 — RF ADAPTER – 50 OHMS SMB MALE TO SMB FEMALE STRAIGHT ADAPTER
P/N :-41510521
- RF Adapter
- SMB Adapters
- SMB to SMB Adapters
- Male to Female
-  50Ω
- Max Frequency (GHz) -DC~ 4GHz
Click here to get Data Sheet
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | SMB |
| Gender1 | Plug(Male) |
| Orientation | Straight |
| Body Plating | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Adapter Side 2 Series | SMB |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Body Plating | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Mounting Features | – |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Max Frequency (GHz)Â Â Â Â Â | DC to 4GHz |
| VSWR(Max) | ≤1.25 |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +165°C |
