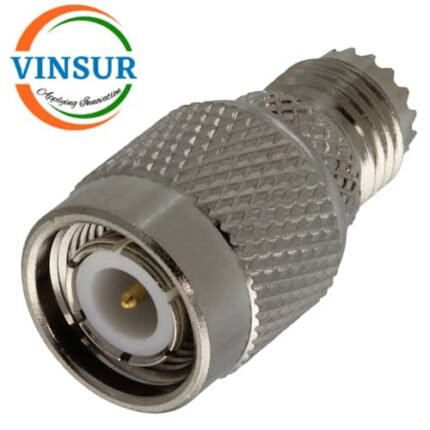

41J10J21 — RF ADAPTER – 50 OHMS TNC MALE TO MINI UHF FEMALE STRAIGHT ADAPTER
P/N :-41J10J21
- RF Adapter
- TNC Adapters
- TNC to Mini-UHF Adapters
- Male to Female
-  50Ω
- Max Frequency (GHz) -DC~ 2GHz
Click here to get Data Sheet
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | TNC |
| Gender1 | Plug(Male) |
| Orientation | Straight |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Adapter Side 2 Series | Mini UHF |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Insulator Material | PTFE |
| Mounting Feature | – |
| Max Frequency (GHz) | DC to 2Ghz |
| VSWR | ≤1.2 |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | +165 |
