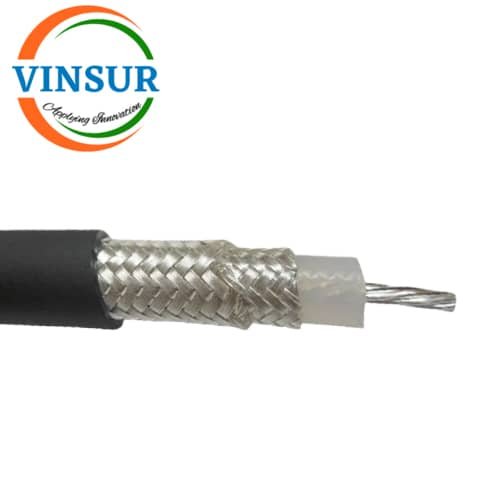

| CABLE CONSTRUCTION | ||
| Description | Material | Size |
| Inner Conductor | Strand Bare Copper | 7/0.75mm |
| Dielectric | Solid PE | 7.25±0.10mm |
| Outer Conductor | Tinned Copper | 7.9±0.15mm |
| Overall Braid | Tinned Copper | 8.4±0.15mm |
| Jacket | PE | 10.80±0.20 mm |
| ELECTRICAL SPECIFICATIONS | |
| Impedance | 50 ±2Ω |
| Capacitance | 101pF/m |
| Velocity of Propagation | 66% |
| Max. Operating Frequency | 11GHz |
| Max. Operating Voltage | 3700 rms |
| Corona Extinction Voltage | 5000Vrms |
| Voltage Withstand | 10000Vrms |
| Spark Test | 5000Vrms |
| ATTENUATION | ||
| Frequency MHz | Max. Attenuation (dB/100ft) | Max. Attenuation (dB/100m) |
| 50 | 1.3 | 4.3 |
| 100 | 1.9 | 6.2 |
| 200 | 2.9 | 9.5 |
| 400 | 4.2 | 13.8 |
| 600 | 5.5 | 18.2 |
| 860 | 6.8 | 22.3 |
| 1000 | 7.5 | 24.5 |
| 1500 | 9.6 | 31.5 |
| 2000 | 11.1 | 36.4 |
| 3000 | 14.2 | 46.6 |
