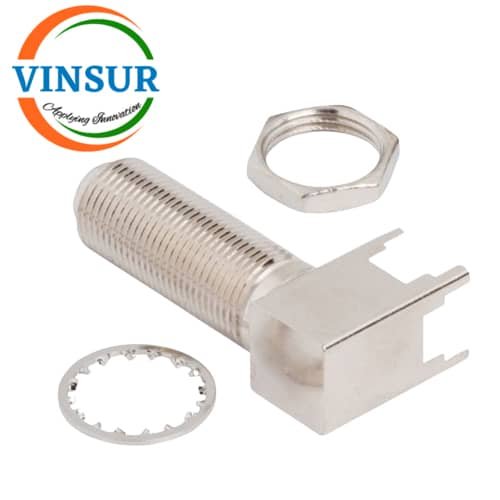

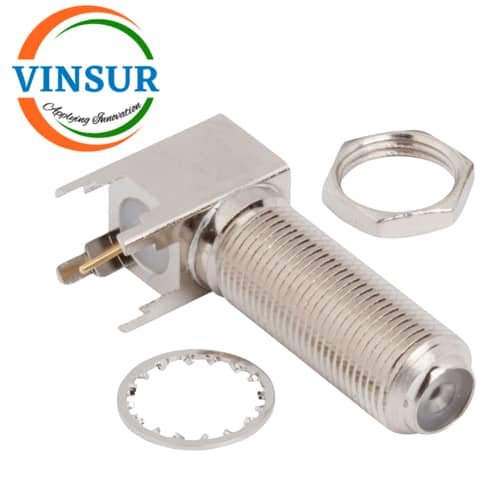

VSW-12B22240 — RF CONNECTOR – 75 OHMS, F-TYPE FEMALE RIGHT ANGLE BULK HEAD REAR MOUNT PCB-THROUGH HOLE
- RF CONNECTOR: 75Ω
- F-TYPE FEMALE
- STRAIGHT
- BULKHEAD REAR MOUNT
- THROUGH HOLE
- PCB MOUNT
Click Here to download the datasheet
For Orders & Info
Description
The F-Type connector series is a durable, high performance threaded interface. Primary applications of the F-Type connectors are for cable television (CATV), set top boxes and cable modems.
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | PCB- Through hole |
| Impedance (Ohms) | 75 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Mounting Type | Through hole |
| Mounting Features | Bulkhead |
| Insulator Material | PTFE |
| VSWR | ≤1.2 |
| Max Frequency (GHz) | DC to 3 GHz |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | 165°C |
