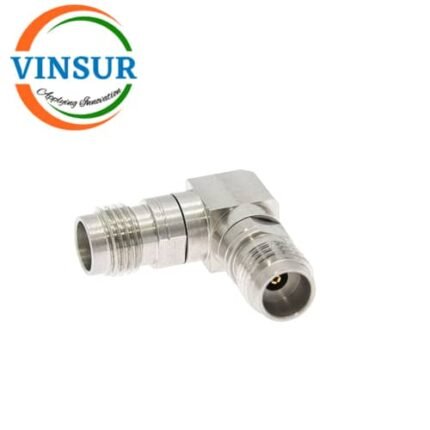

VSW-2.4-FF-RA-AD-RF ADAPTER – 50 OHMS 2.4MM FEMALE RIGHT ANGLE TO 2.4MM FEMALE RIGHT ANGLE ADAPTER
P/N :VSW-VSW-2.4-FF-RA-AD
- RF Adapter
- 2.4mm Adapters
- 2.4mm to 2.4mm Adapters
- Female to Female
- 50Ω
- Max Frequency (GHz) -DC~50GHz
Click here to get Data Sheet
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | 2.4mm |
| Gender1 | Jack(Female) |
| Orientation | Right Angle |
| Adapter Side 2 Series | 2.4mm |
| Gender2 | Jack(Female) |
| Orientation | Right Angle |
| Mounting Features | – |
| Impedance (Ohms) | 50 |
| Body Plating | Stainless Steel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Insulator Material | PTFE |
| Max Frequency (GHz)Â Â Â Â Â | DC~50GHz |
| Insertion loss | ≤0.05 |
| VSWR(Max) | ≤1.25:1 |
| Durability | 500 Cycles |
| Min. Temp. (Celsius) | -55°C |
| Max. Temp. (Celsius) | +165°C |
