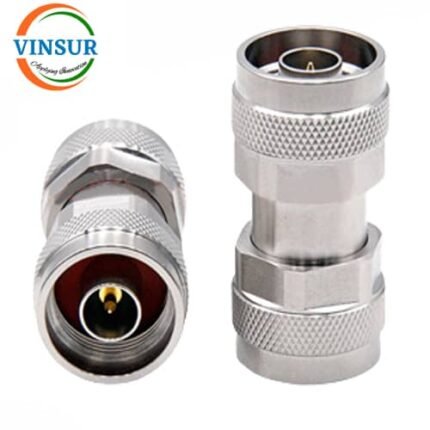

VSW-41116111– RF ADAPTER – 50OHMS, N MALE TO N MALE STRAIGHT MILGRADE ADAPTERS
- RF Adapters
- N Adapters
- N to N Adapter
- Male to Male
- 50Ω
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | N-type |
| Gender1 | Plug(Male) |
| Orientation | Straight |
| Body Plating | Stainless Steel |
| Body Material | Beryllium Copper |
| Contact Finish | Gold |
| Contact Material | Brass |
| Adapter Side 2 Series | N-type |
| Gender2 | Plug(Male) |
| Orientation | Straight |
| Body Plating | Stainless Steel |
| Body Material | Beryllium Copper |
| Contact Finish | Gold |
| Contact Material | Brass |
| Mounting Features | – |
| Impedance (Ohms) | 50Ω |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 18GHz |
| VSWR(Max) | ≤1.5 Max |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +165°C |
