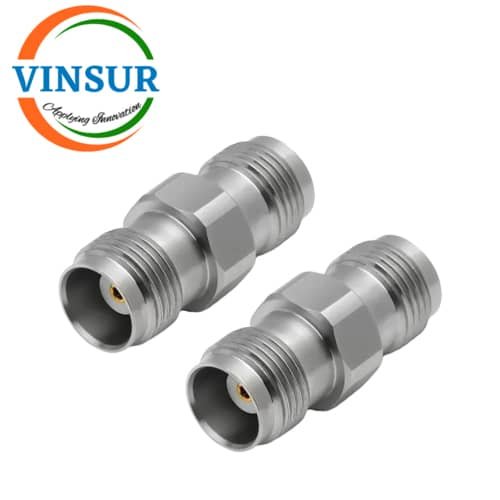

VSW-4122022-11G — RF ADAPTER – 50 OHMS, TNC FEMALE TO TNC FEMALE STRAIGHT ADAPTER

SKU: VSW-4122022-11G

RF Adapters
TNC Adapters
TNC to TNC Adapter

Click Here to get Datasheet

Click Here to get Drawing

For Orders & Info

Call Us WhatsApp Us

Compare

Add to wishlist

Description

ADAPTER SPECIFICATIONS
Adapter Side 1 Series	TNC
Gender1	Jack(Female)
Orientation	Straight
Body Finish	Nickel
Body Material	Stainless Steel
Contact Finish	Gold
Contact Material	Beryllium copper
Adapter Side 2 Series	TNC
Gender2	Jack(Female)
Orientation	Straight
Impedance (Ohms)	50
Body Finish	Nickel
Body Material	Stainless Steel
Contact Finish	Gold
Contact Material	Beryllium copper
Insulator Material	PTFE
Mounting Feature	–
Max Frequency (GHz)	DC to 11Ghz
VSWR	≤1.25
Min. Temp. (Celsius)	-65°C
Max. Temp. (Celsius)	+165°C
