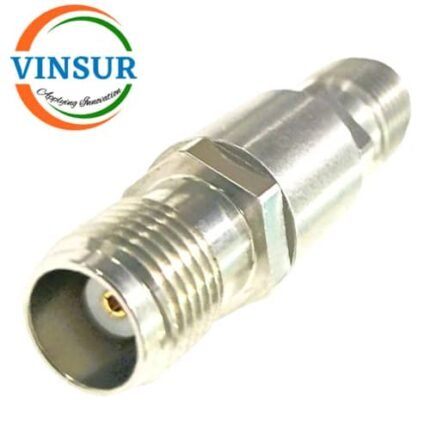

VSW-41221221-18G — RF ADAPTER – 50 OHMS, TNC FEMALE TO TNC FEMALE STRAIGHT BULKHEAD ADAPTER

SKU: VSW-41221221-18G

RF Adapters
TNC Adapters
TNC to TNC Adapter

Click Here to get Datasheet

Click Here to get Drawing

For Orders & Info

Call Us WhatsApp Us

Add to wishlist

Description

ADAPTER SPECIFICATIONS
Adapter Side 1 Series	SMA
Gender1	Jack(Female)
Orientation	Straight
Body Finish	Nickel
Body Material	Stainless Steel
Contact Finish	Gold
Contact Material	Beryllium Copper
Adapter Side 2 Series	TNC
Gender2	Jack(Female)
Orientation	Straight
Impedance (Ohms)	50
Body Finish	Nickel
Body Material	Stainless Steel
Contact Finish	Gold
Contact Material	Beryllium Copper
Insulator Material	PTFE
Mounting Feature	Bulkhead
Max Frequency (GHz)	DC to 18GHz
VSWR	≤1.2
Min. Temp. (Celsius)	-65°C
Max. Temp. (Celsius)	+165°C
