| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | N-type |
| Gender1 | Plug(Male) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Adapter Side 2 Series | N-type |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Mounting Features | Bulkhead |
| Impedance (Ohms) | 50Ω |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 3GHz |
| VSWR(Max) | ≤1.18 |
| Attenuation | ≤0.3dB |
| Min. Temp. (Celsius) | -40°C |

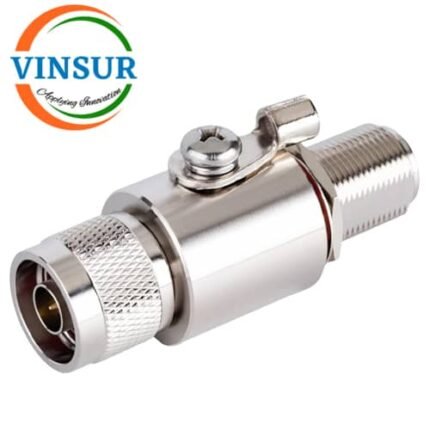

VSW-N-MF-SGA-ADP — 50 OHMS N MALE TO N FEMALE BULKHEAD SURGE ARRESTERS
- RF Surge Lightning Arrester
- N to N Adapter
- Male to Female
- Bulkhead
- 50Ω
