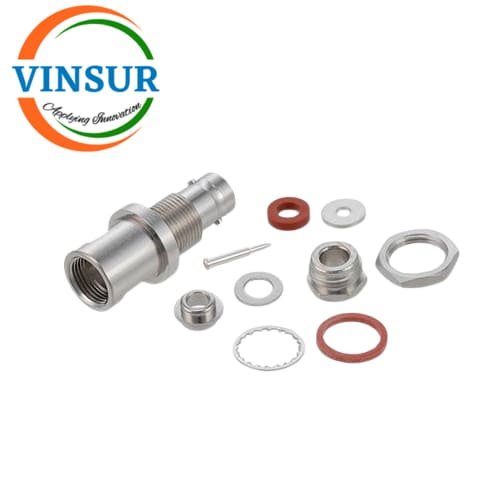

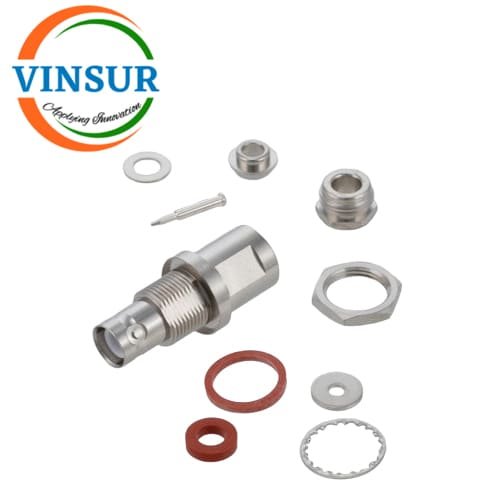

VSW-SHV-MST-CL-400 — RF CONNECTORES – 50 OHMS, SHV FEMALE STRAIGHT BULK HEAD CLAMP TYPE FOR LMR400 CABLE
- RF CONNECTOR: 50Ω
- SHV FEMALE
- STRAIGHT
- CLAMP TYPE
- LMR400 CABLE
Click Here to download the datasheet
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | Cable – Clamp |
| Impedance (Ohms) | 50 |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Mounting Features | Bulk Head |
| Cable Type | LMR400 |
| Max Frequency | 300MHz |
| VSWR | ≤ 1.3:1 |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +165°C |
