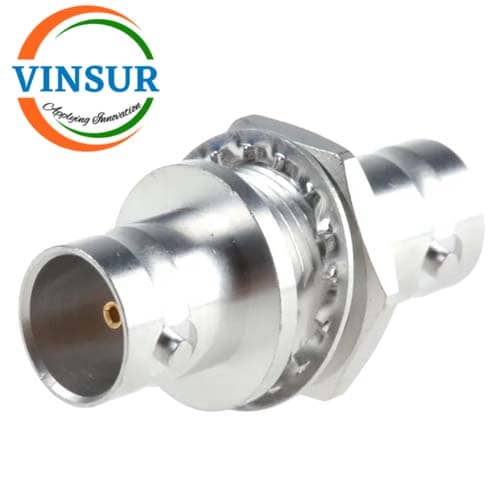

VSW250013-AD — RF ADAPTER – 75 OHMS, BNC FEMALE TO BNC FEMALE STRAIGHT BULKHEAD ADAPTER
- RF Adapters
- BNC Adapters
- BNC to BNC Adapter
- Female to Female
- 75Ω Bulkhead
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | BNC |
| Gender1 | Jack(Female) |
| Orientation | Straight |
| Mounting Features | – |
| Adapter Side 2 Series | BNC |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Mounting Features | Bulkhead |
| Impedance (Ohms) | 75 |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 4GHz |
| VSWR(Max) | ≤1.2 |
| Min. Temp. (Celsius) | -40°C |
| Max. Temp. (Celsius) | +85°C |
