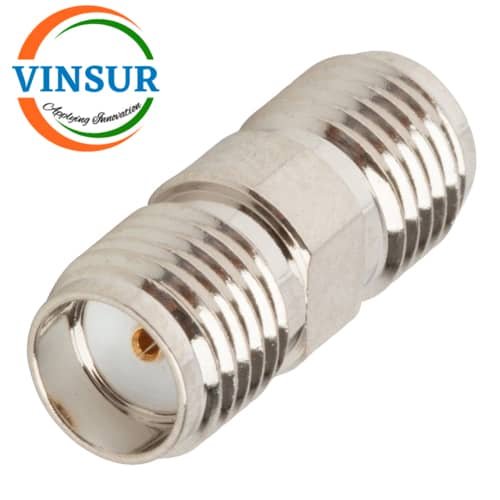

VSW250012-AD — RF ADAPTER – 50 OHMS, SMA FEMALE TO SMA FEMALE STRAIGHT ADAPTER (14.5GHz)
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | SMA |
| Gender1 | Jack(Female) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Adapter Side 2 Series | SMA |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Body Plating | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Mounting Features | – |
| Impedance (Ohms) | 50Ω |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 14.5GHz |
| VSWR | ≤1.2 |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +165°C |
