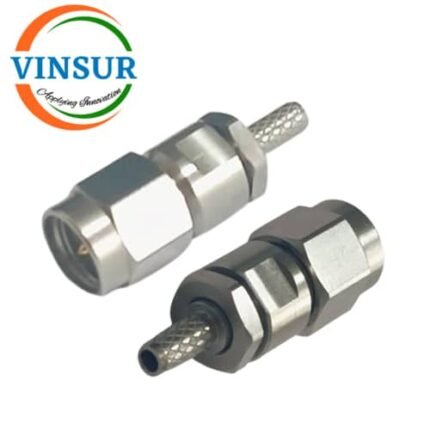

VSW250017-CN — RF CONNECTOR – 50 OHMS SMA MALE STRAIGHT CRIMP TYPE FOR RG316/LMR100/RG174/RG188 CABLE
- RF CONNECTOR: 50Ω
- SMA MALE
- STRAIGHT
- CRIMP TYPE
- RG-316 CABLE
Click Here to download the datasheet
Click Here to download the drawing
Description
SMA connectors are precision connectors for microwave applications up to 18 GHz. The extended frequency version operates with excellent return loss performances up to 26.5 GHz. There is a huge variety of applications for SMA connectors, as in telecom, test & measurement, instruments, avionics, etc.
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Straight |
| Termination Style | Cable – Solder |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Stainless Steel |
| Contact Finish | Beryllium Copper |
| Contact Material | Brass |
| VSWR | 1.20max |
| Insulator Material | PTFE |
| Cable Type | RG316 |
| Max Frequency (GHz) | DC to 18 GHz |
| Polarity | Standard |
| Operating Temperature | -55°C to +105°C |
| Insulation Resistance | ≥5000MΩ |
| Dielectric withstand voltage | 1000V |
