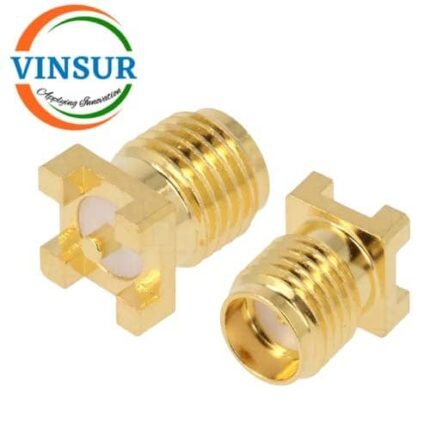

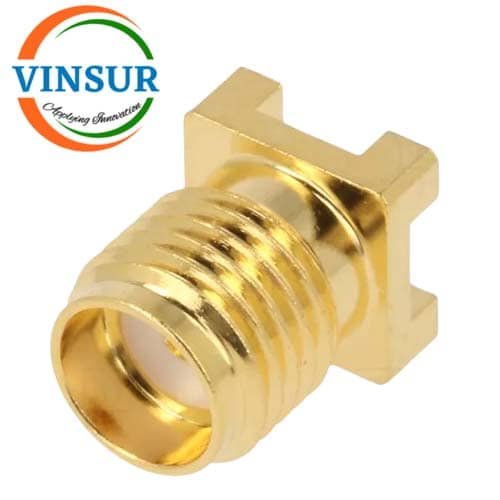

11521060 — RF CONNECTOR – 50 OHMS , SMA FEMALE , STRAIGHT , PCB-SURFACE MOUNT
- RF CONNECTOR: 50Ω
- SMA FEMALE
- STRAIGHT
- PCB – Surface Mount
Click Here to download the datasheet
Click Here to download the drawing
Description
SMA connectors are precision connectors for microwave applications up to 18 GHz. The extended frequency version operates with excellent return loss performances up to 26.5 GHz. There is a huge variety of applications for SMA connectors, as in telecom, test & measurement, instruments, avionics, etc.
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | PCB – Surface Mount |
| Impedance (Ohms) | 50 |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Insulator Material | PTFE |
| Coupling Mechanism | Threaded |
| VSWR | ≤1.25:1 |
| Max Frequency (GHz) | DC to 6Ghz |
| Polarity | Standard |
| Thread Direction | Standard |
| Min. Temp. (Celsius) | -45° |
| Max. Temp. (Celsius) | 125° |
