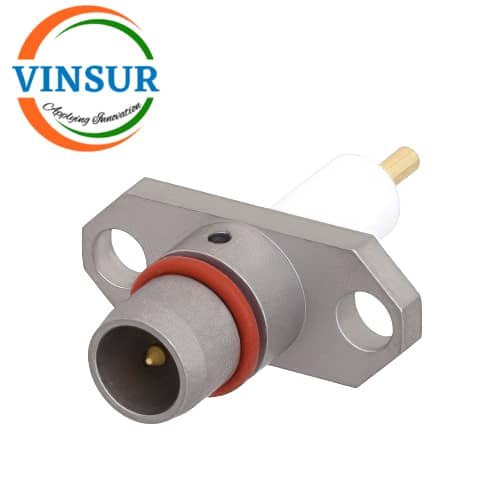

11V11330 — RF CONNECTOR — 50OHMS , BMA MALE , STRAIGHT , 2 HOLE FLANGE , SOLDER TYPE , PCB MOUNT
- RF CONNECTOR: 50Ω
- BMA Connectors
- Plug (Male)
- Straight
- 2-hole flange
Applications:
- General Purpose Test
- Blind Mating
- Base Station
- Rack and Panel
Click Here to download the datasheet
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Straight |
| Termination Style | Solder |
| Impedance (Ohms) | 50 |
| Body Finish | Stainless Steel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | RG402 |
| VSWR | 1:25:1 |
| Max Frequency (GHz) | DC to 22Ghz |
| Insertion Loss | 0.32 |
| Mounting Type | PCB |
| Body Style | 2-hole flange |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +125°C |
