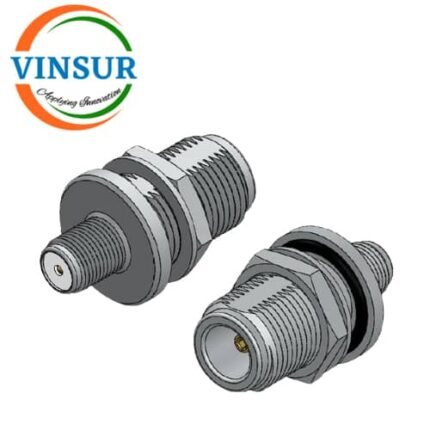

41121B21 — RF ADAPTER – 50 OHMS N FEMALE BULKHEAD TO F-TYPE FEMALE STRAIGHT ADAPTERS
- RF Adapters
- F-Type Adapters
- F-Type to N-Type Adapter
- Female to Female
- Bulkhead
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | F-Type |
| Gender1 | Jack(Female) |
| Orientation | Straight |
| Impedance (Ohms) | 75 |
| Adapter Side 2 Series | N-Type |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Mounting Features | Bulkhead |
| Impedance (Ohms) | 50 |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 2GHz |
| VSWR | ≤1.20 |
| Min. Temp. (Celsius) | -40°C |
| Max. Temp. (Celsius) | +85°C |
