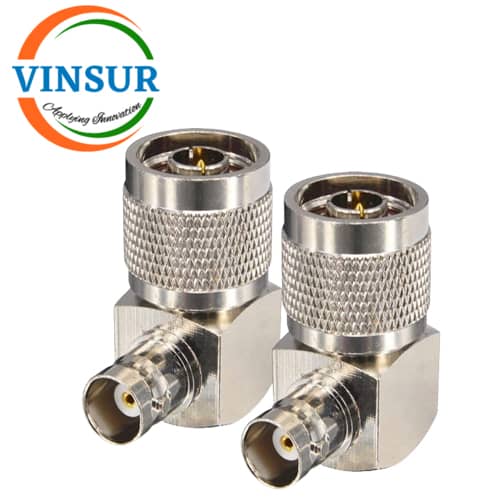

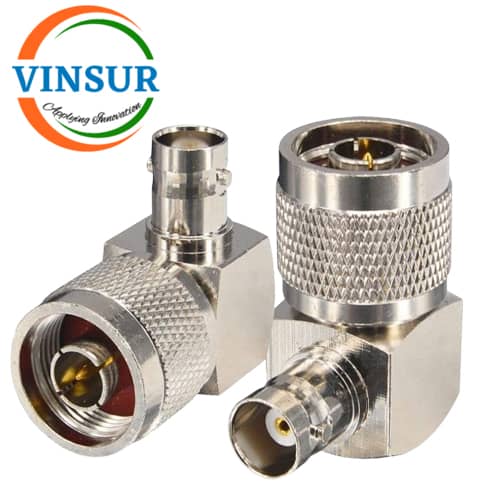

41320112 — RF ADAPTER – 50 OHMS BNC FEMALE STRAIGHT N MALE RIGHT ANGLE ADAPTER
- RF Adapters
- BNC Adapters
- BNC to N-type Adapter
- Male to Female
- Right Angle
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | BNC |
| Gender1 | Jack(Female) |
| Orientation | Right Angle |
| Mounting Features | – |
| Adapter Side 2 Series | N |
| Gender2 | Plug(Male) |
| Orientation | Right Angle |
| Mounting Features | – |
| Impedance (Ohms) | 50 |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 4GHz |
| VSWR(Max) | 1.3:1 |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +165°C |
