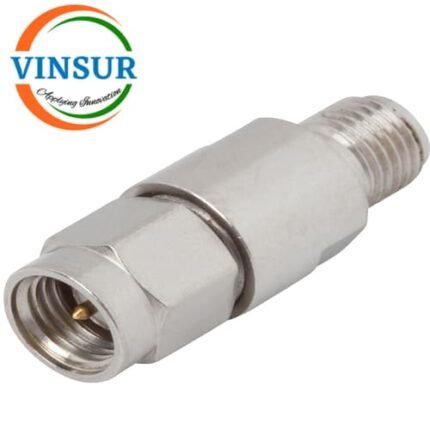

41415427-10–RF Fixed Attenuator (2-5W 8dB DC-18GHz SMA Male to Female)

P/N :-41415427-10

RF Attenuator
RF Fixed Attenuator
DC to 18GHz
Attenuation(8db)
SMA Male to Female

Click Here to get Data Sheet

For Orders & Info

Call Us WhatsApp Us

Add to wishlist

Description

SPECIFICATION
Gender1	Male
Adapter Side 1 Series	SMA
Gender2	Female
Adapter Side 2 Series	SMA
Attenuation	8dB
Impedance (Ohms)	50
Power (Max Watts)	2-5
VSWR	≤1.20
Body Material	Stainless Steel
Contact Material	Beryllium copper
Dielectric	PTFE
Max Frequency	DC to 18GHz
