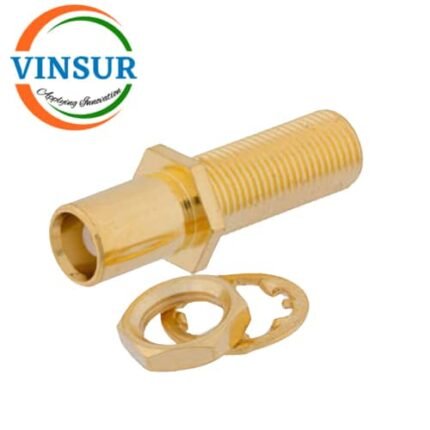

41620621 — RF CONNECTOR – 50 OHMS, MCX FEMALE TO MCX FEMALE STRAIGHT BULKHEAD ADAPTERS
- RF ADAPTER: 50Ω
- MCX FEMALE
- STRAIGHT
- MCX FEMALE
Click Here to download the datasheet
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | MCX |
| Gender1 | Jack(Female) |
| Orientation | Straight |
| Impedance (Ohms) | 50 |
| Adapter Side 2 Series | MCX |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Mounting Features | Bulkhead |
| Impedance (Ohms) | 50 |
| Body Plating | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 3GHz |
| VSWR | 1.25:1 |
| Min. Temp. (Celsius) | -55°C |
| Max. Temp. (Celsius) | +155°C |
