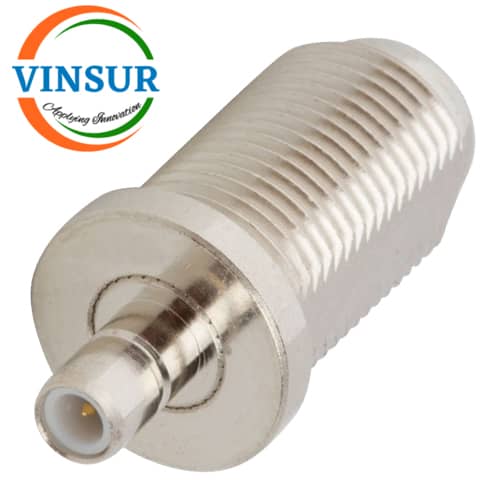

41B1105210 — RF ADAPTER – 50 OHMS,F TYPE ,MALE ,STRAIGHT ,TO , SMB,FEMALE,STRAIGHT,ADAPTERS
- RF Adapters
- F-Type Adapters
- F-Type to SMB Adapter
- Male to Female
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | F-Type |
| Gender1 | Jack(Female) |
| Orientation | Straight |
| Impedance (Ohms) | 50 |
| Adapter Side 2 Series | SMB |
| Gender2 | Plug(Male) |
| Orientation | Straight |
| Mounting Features | – |
| Impedance (Ohms) | 50 |
| Body Plating | Nickel |
| Body Material | Beryllium Copper |
| Contact Finish | Gold |
| Contact Material | Brass |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 2GHz |
| VSWR | ≤1.2 |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +165°C |
