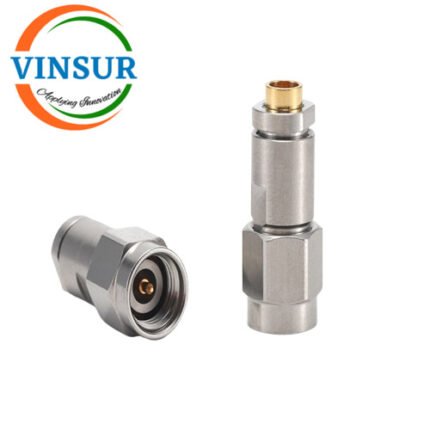

K-Type 2.92mm microwave connector
Description
| Electrical data | Requirements | |
| Frequency range | DC-40GHZ | |
| Dielectric withstanding voltage | ≧750V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧3000MΩ | |
| Contact Resistance | ||
| Center conductor | ≦4.0mΩ | |
| Outer conductor | ≦2.0mΩ | |
| VSWR | ≦1.25:1 | |
| Mechanical data | Requirements | |
| Durability (mattings) | ≧500 | |
| Environmental data | Requirements | |
| Temperature range | -45℃ to +85℃ | |
| Material data | Requirements | |
| Connector parts | Material | Plating |
| Body | Stainless steel (Su303), passivated | |
| Pin contacts | Beryllium-Copper | gold-plated |
| Insulators | PEI | |
